Sanitary & Food-Grade Stainless Steel Fabrication
Food-contact hoppers, chutes, tanks, conveyor frames, guarding, and washdown structures in 304 and 316L — TIG welded crevice-free, ground flush, polished to a sanitary finish, and passivated before it leaves the floor.
UL 508A Certified Shop • U.S. Veteran-Owned • Las Vegas, NV
Built for washdown
Hoppers & chutes
Self-draining transitions with radiused internal corners and blended welds, sized from your flow model and discharge hardware.

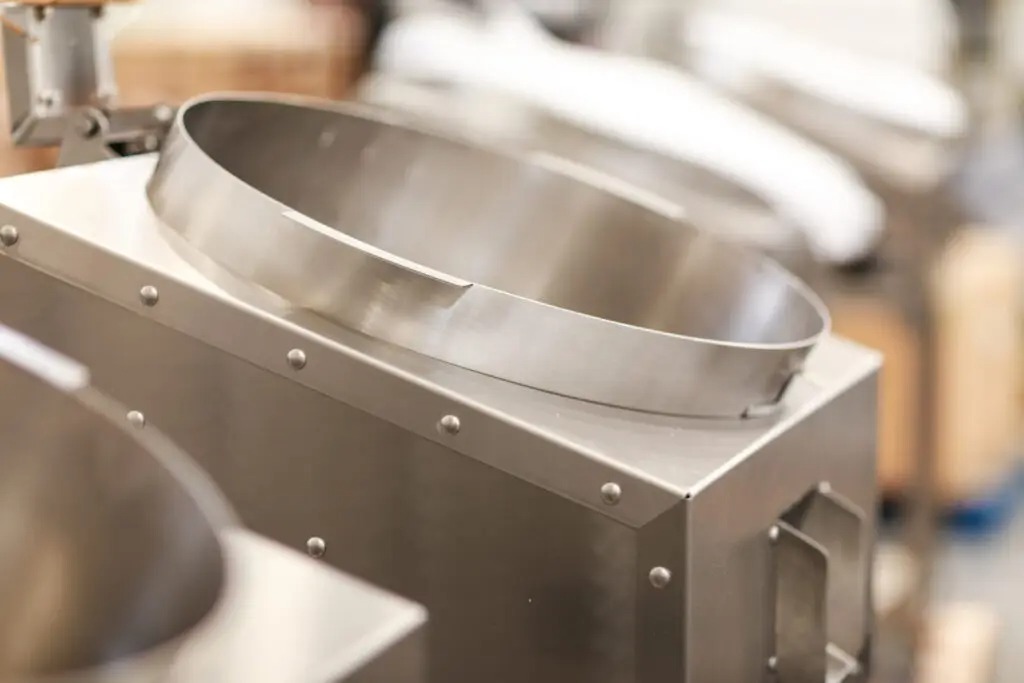

Tanks & vessels
Rolled and welded bodies with sanitary fittings, sight ports, and jacketed or insulated options for process service.
Conveyor frames & guarding
Tube and formed-channel frames, belt supports, and interlock-ready guard panels that break down for cleaning.
Machine bases & skids
Sealed-member frames on sanitary leveling feet, drilled for your drives, gearboxes, and pump packages.
Tables & work surfaces
Inspection and packing stations with rolled edges, undershelves, and cutouts for scales, chutes, and bins.
Washdown enclosures
Sloped-top NEMA 4X boxes and operator stations in 316, wired to UL 508A when the panel is ours too.
Sanitary specifications
Send your model and the plant standard you're held to — we confirm every line against your print before quoting.
Request a Quote| Materials | 304, 304L, 316, 316L stainless; food-grade UHMW, HDPE, and acetal |
|---|---|
| Welding | TIG, back-purged, continuous crevice-free seams on all food-contact surfaces |
| Weld finish | Ground and blended flush, 180–240 grit, no shadow at the seam |
| Surface finish | #4 brushed at ≈32 µin Ra standard; 2B, bead blast, or electropolish on request |
| Passivation | Citric or nitric per ASTM A967, with record supplied on request |
| Design intent | 3-A principles — sloped self-draining surfaces, radiused corners, no hollow unsealed members |
| Hardware | Sanitary clamps and fittings, sealed leveling feet, food-grade gaskets, captive fasteners |
| Thickness range | 22 ga through 1/2" plate; tube and formed structural sections |
| Documentation | Material certs, weld map, passivation record, as-built dimensional report |
| File formats | STEP, STP, IGS, SLDPRT, DWG, DXF, PDF |
Off our floor
Do you fabricate to 3-A sanitary design principles?
Yes. We build to 3-A design intent — continuous crevice-free welds ground flush, radiused internal corners, sloped surfaces that self-drain, no hollow unsealed members, and hardware that disassembles for cleaning. Tell us the standard or plant spec you're held to and we'll confirm each detail against your print before quoting.
What surface finish can you hold for washdown service?
Our standard food-contact finish is a #4 mechanical polish at roughly 32 µin Ra, blended across welds so there's no shadow at the seam. We also supply bead-blast, 2B mill finish, and electropolished surfaces where a lower Ra or a passive layer is specified.
Do you passivate, and do you document it?
Yes. Fabricated parts are cleaned and passivated per ASTM A967 using citric or nitric chemistry, and we can supply the passivation record along with material certifications for the plate and tube used on your job.
Can you supply a complete assembly, not just the metal?
Yes. We combine sanitary fabrication with mechanical assembly, drives, and UL 508A washdown control panels — so a hopper, conveyor, or skid arrives wired, functionally tested, and documented as one deliverable.
Send us your drawings
Upload STEP, DWG, or DXF files with your material, finish, and sanitary standard. Free consultation, response within one business day.
